LS Conversion Swap Mounts Compatible with 88-99 4×4 Chevy Truck Plain Steel DD-2575-4

Product Description:

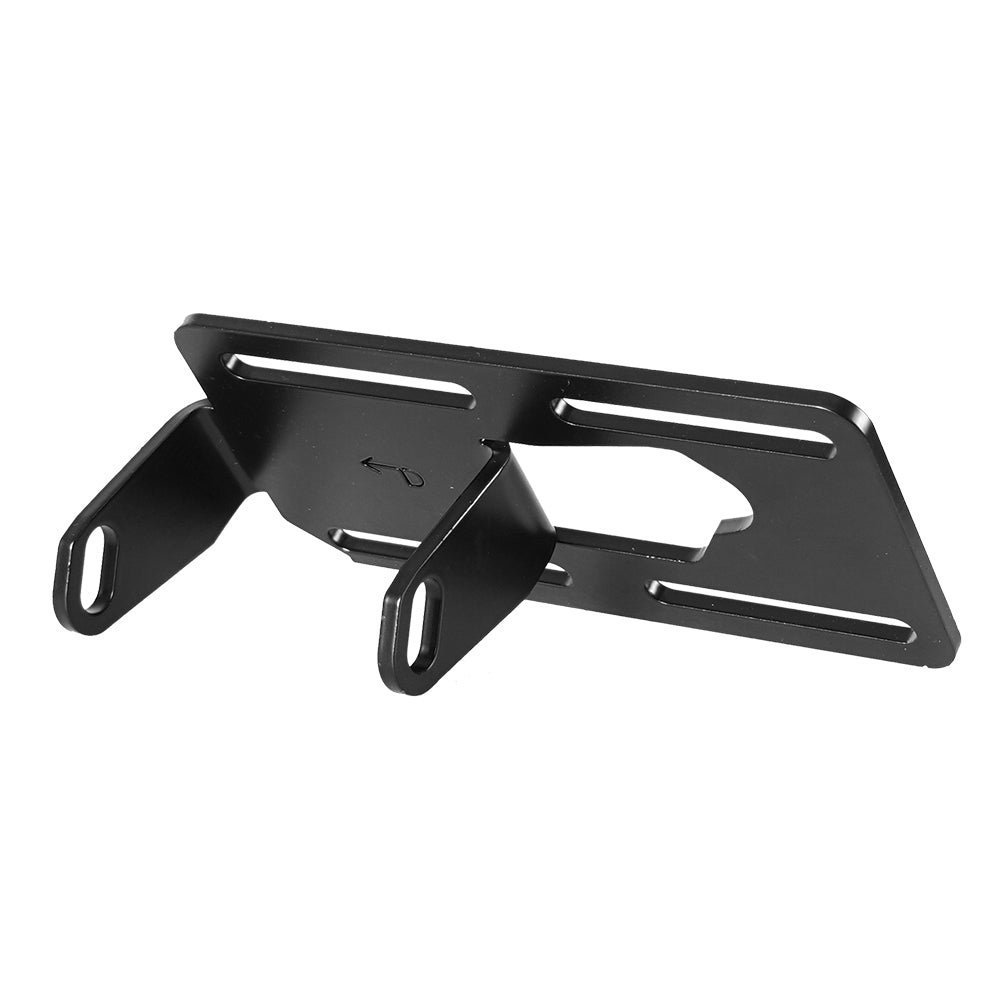

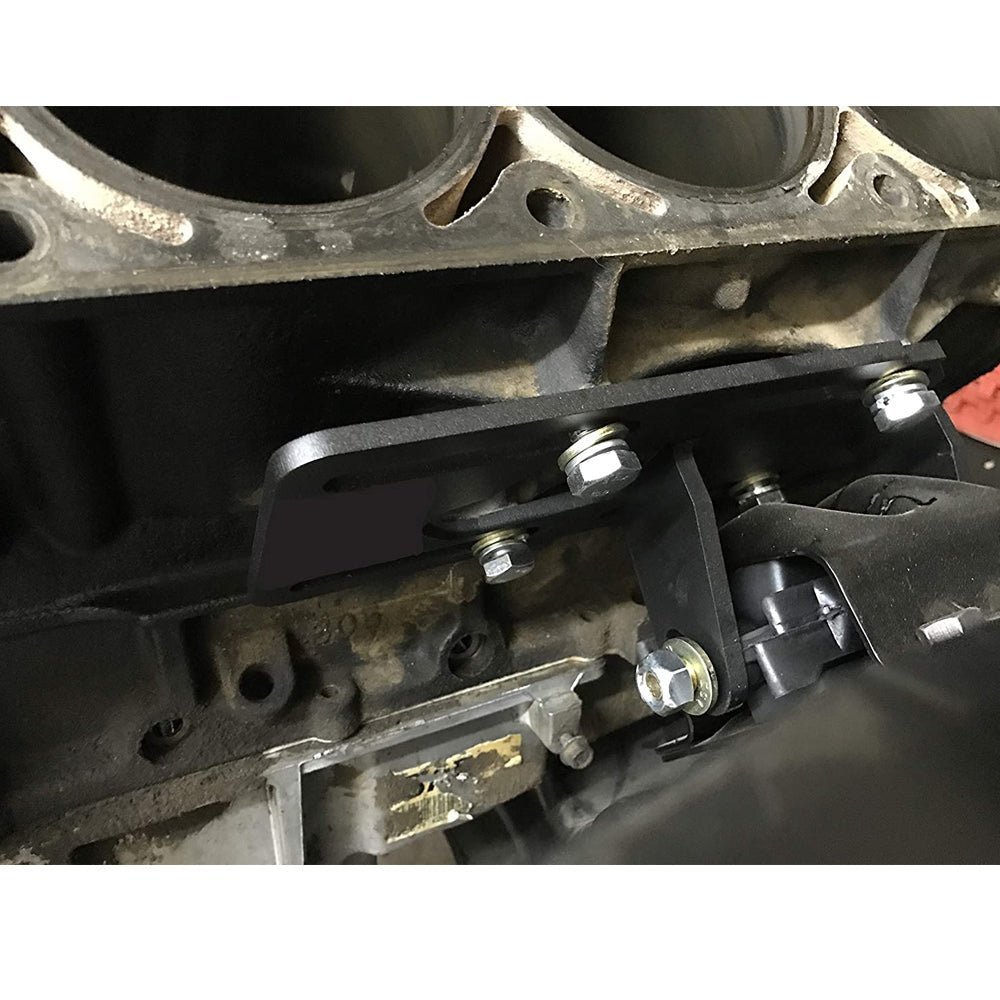

Dingo Truck Mounts are precision CNC laser cut from .250 thick 1050 High Carbon cold rolled steel. These Patented Design LS adjustable conversion mounts are slotted for adjustment with engine placement in the engine compartment. These mounts will allow you to move the engine from the original bell housing position up to 2 1/2 inches forward. and up to 1/2 inch rearward. When torqued in place they do not allow the engine to move. even under high horsepower applications. Precision CNC press brake folded with large radius die to reduce stress on the bends. These conversion mounts are designed to be used with the factory rubber clam shell style mounts on your original frame. These mounts allows the installation of TH350. TH400. TH700R4. 4L60E. 4L65E. 4L80. and any other combination of standard or automatic transmissions. Grade-8 zinc coated hardware including new cross bolt.

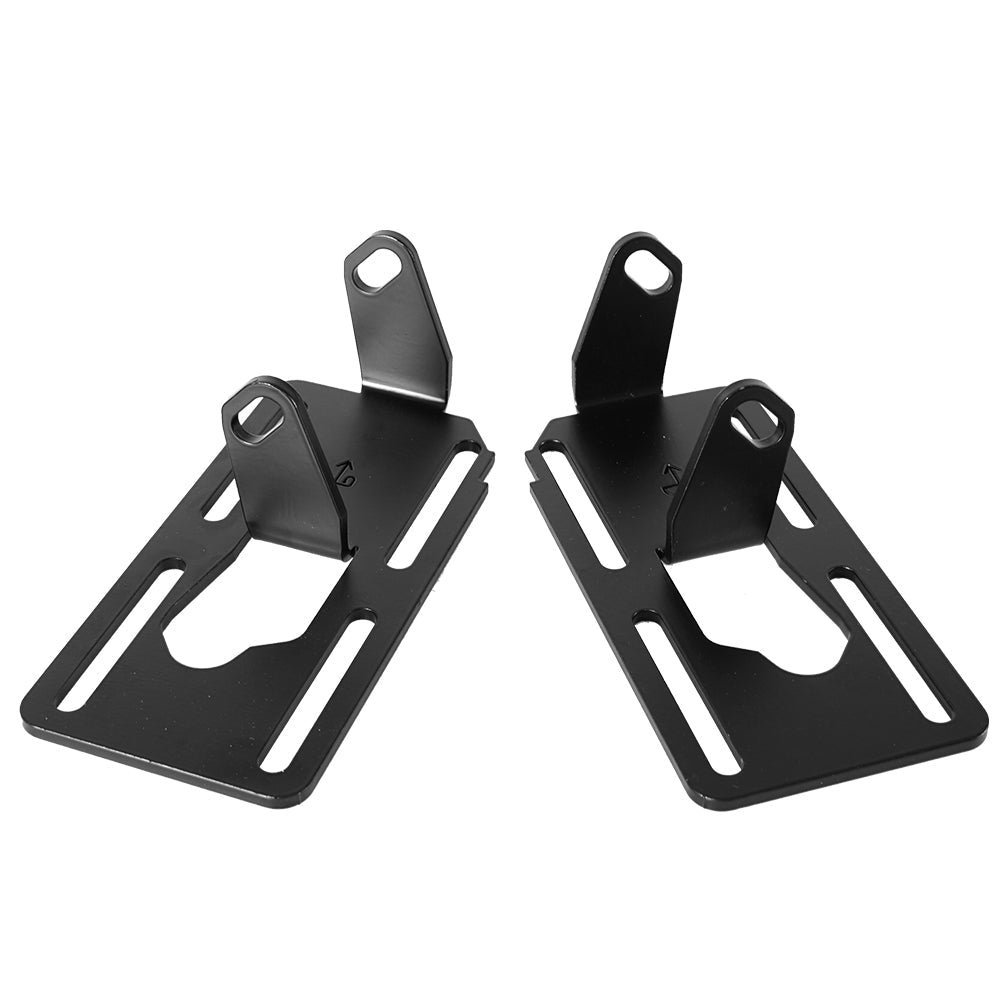

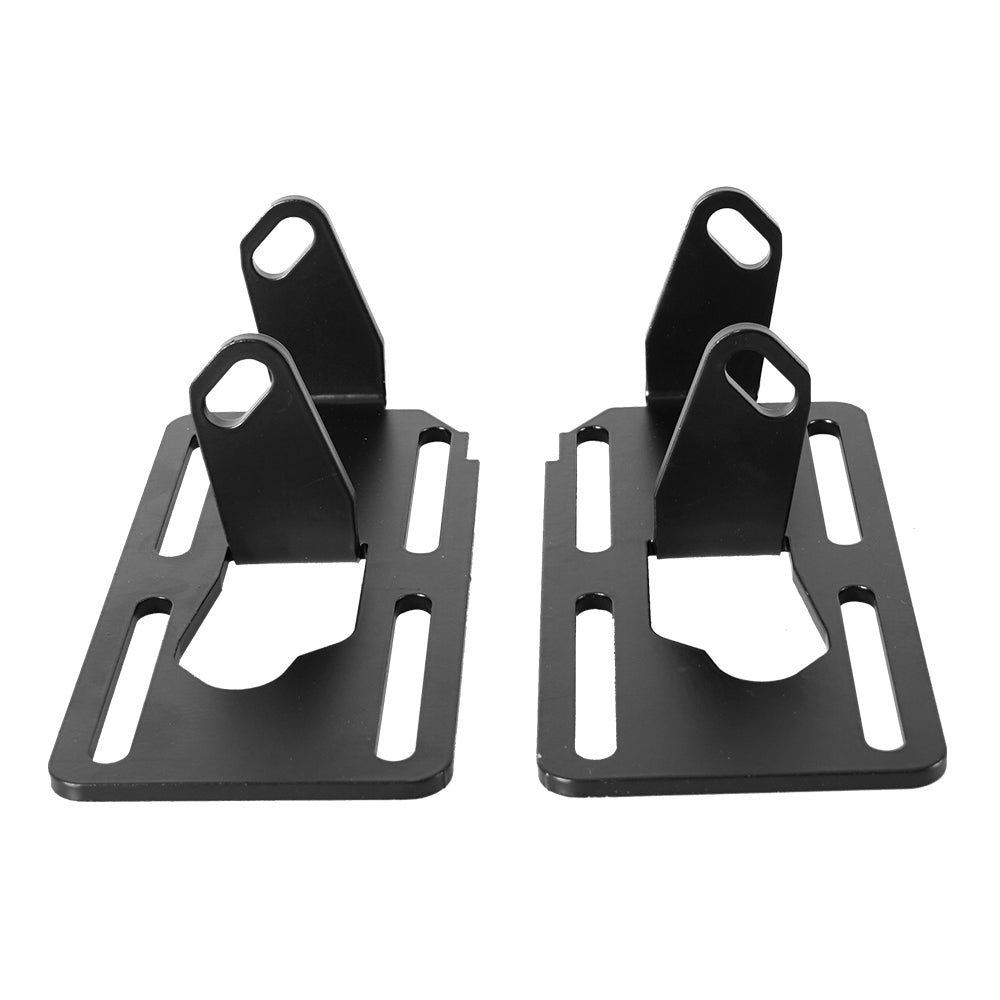

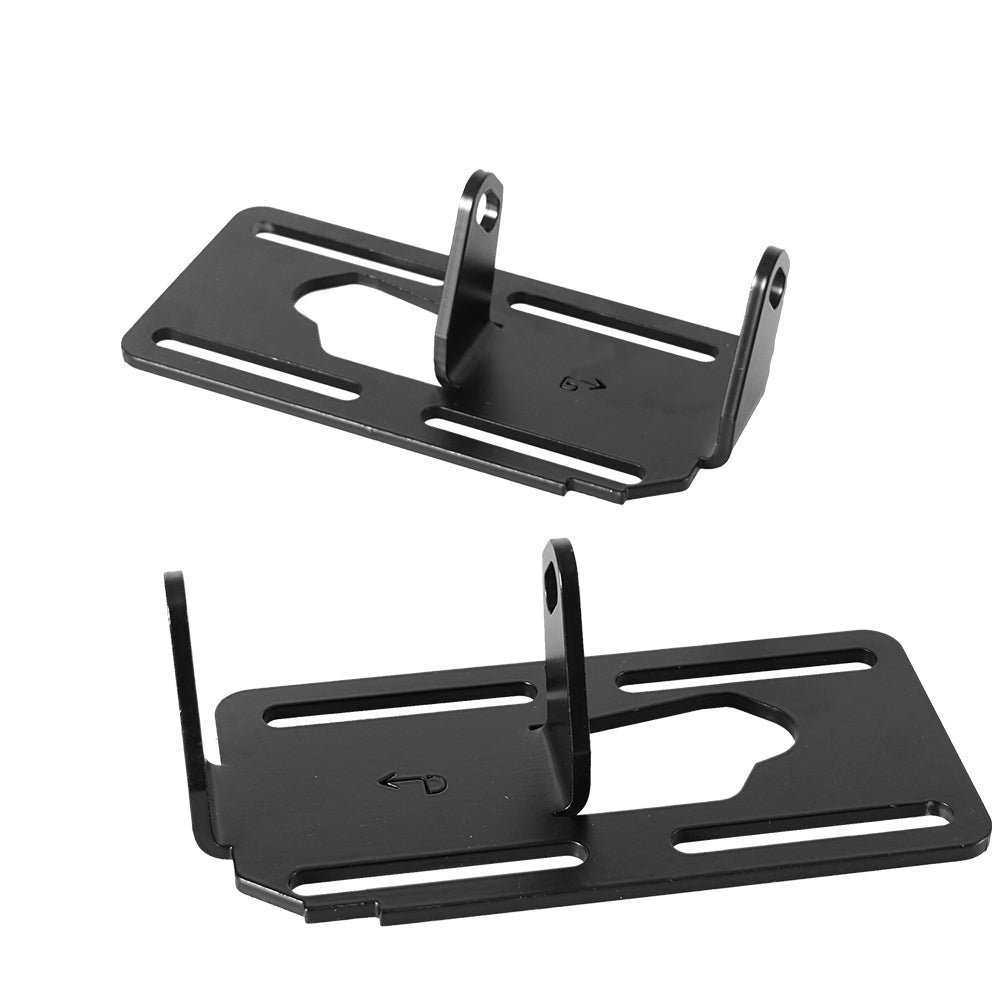

* Sold in pairs. left and right. “D” is the Drivers side. “P” is the Passenger side. Arrows point forward.
* These mounts will clear LS Truck low mount A/C but will not allow the engine to slide back. they mount against the a/c compressor bracket pulling the engine 2 1/2″ forward from the original bell housing position.
* Will not fit with Corvette or Camaro-GTO low mount A/C.
* These mounts will clear low mount alternators but the amount of adjustment may be limited.
* Clears LS truck oil pan with a small notch on the driver side of the crossmember.
* Can be used with Energy Suspension 3.1145G motor mount urethane inserts.

Specification:
Material: Iron
Color: Black
Package Size: 12*5*4 in
Weight: 6 lb

Fitment:
Universal for LS1 Swap 88-98 LS2 LS6 LSX LQ4 LQ9 Engine

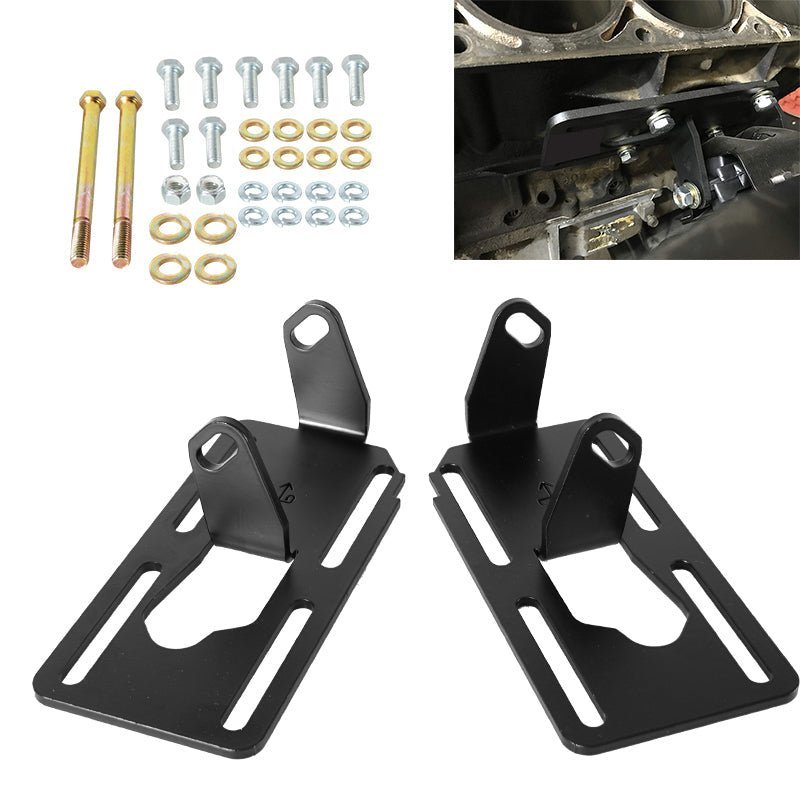

Package Include:
2* Brackets

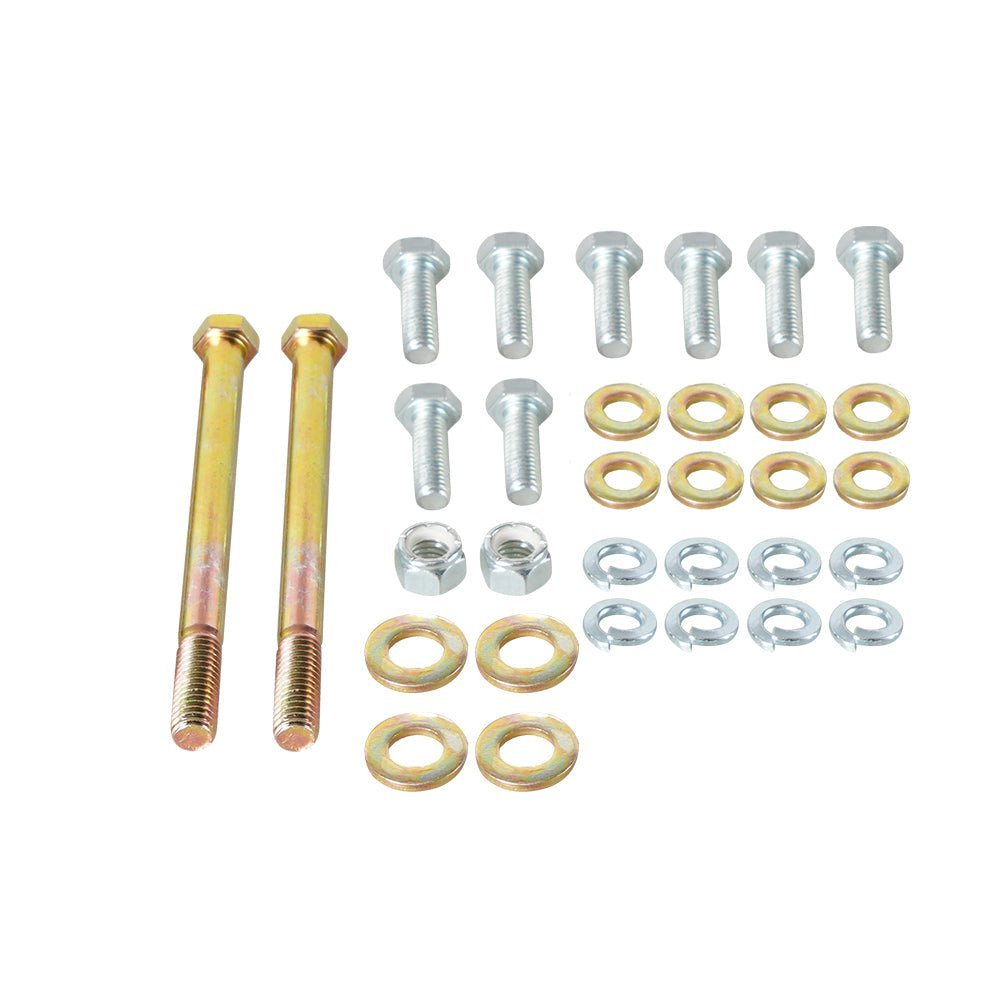

1* Accessories kit
